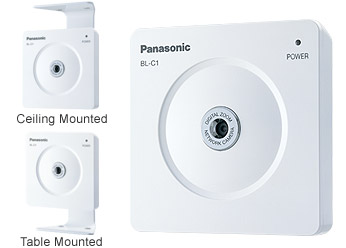

Panasonic IP Camera BL-C1

Rp. 1.250.000,-

FEATURES :

10x Digital Zoom Function*

It’s so reassuring to see your pet’s happy face while you are out. A simple mouse operation is all you need to enlarge the image,
using the 10x digital zoom, so you get a clear view of your pet’s expression.

Multi-camera Capability*

Check the images from four cameras at once. Monitor 12 cameras in all, and display them all at once (with no audio). Use a recording program to save images and audio to a PC hard disk.

• *1-1 To use this function, one of the cameras must be registered with the addresses of all other cameras in advance. The 640 x 480 resolution cannot be used with the multi-screen display.
• *1-2 Switching from the moving image mode to the still image mode reduces the load on the network. The still image mode is recommended when the Internet connection speed is 100 kbps or lower (guideline speed).
• *1-3 This function can be used only with a PC. It cannot be used with a cell phone.

Motion Detection Function

In this mode, the camera captures an image only when motion is detected based on the preset threshold or sensitivity of the camera. The image can be stored temporarily in the camera, or sent to you by e-mail or FTP data transfer.^*1

• *1-1 The sensor’s detection history can also be e-mailed to you once each day at a preset time.
• *1-2 POP before SMTP authentication and SMTP authentication (PLAIN and LOGIN) are supported. SMTP authentication (CRAM-MD5) is not supported.

Recording Program^* (Included)

You can record the moving images captured by the camera on your PC. This lets you enjoy natural motion that isn’t possible with still pictures.

• * Recording is possible for only one camera. To record images from multiple cameras, use the BB-HNP11.

Specifications

Image compression	JPEG (Motion JPEG)
Video resolution	640 x 480, 320 x 240(default), 160 x 120
Image quality	JPEG (favor clarity, standard, favor motion)
Frame rate*1	Max. 7.5 frames/sec (640 x 480) Max. 15 frames/sec (320 x 240, 160 x 120)
Security	User ID/password
Supported protocols	TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP,ICMP, POP3, NTP, UPnPTM
User access limit	Max. 20 simultaneous accesses
Buffered images*2	Approx. 250 images (320 x 240) •standard image quality •with time display
Image transfer method	SMTP*3, FTP
Image buffer/transfer triggers	Timer or motion detection
Network camera
Zoom	10x digital zoom (by area)
Viewing angle	53° horizontal 41° vertical
Sensor type	1/4 inch CMOS sensor, approx. 320,000 pixels
Lens focal point	Fixed (focal range: 0.3 m to ?)
Lens brightness	F2.8
Required light intensity	10 to 10,000 lux (in color night view mode : 4 to 10,000 lux)
Terminal
Network interface	Ethernet (10Base-T/100Base-TX)
General
Operating temperature	+5°C to +40°C (+41°F to +104°F)
Operating humidity	20% to 80% (no condensation)
Dimensions (H x W x D)	85 x85 x25 mm (3 3/8 x 3 3/8 x 1 inches)
Weight (only the unit)	100 g (0.22 lb)
Power supply (E)	Input: 220-240 V AC, output: 9 V DC
Power supply (CE)	Input: 100-240 V AC, output: 9 V DC
Power supply (US)	Input: 120 V AC, output: 9 V DC
Consumption	1.7 W

*1 The frame rate may slow down depending on the network environment, PC performance, image quality, SD memory recording, when color night view mode is activated, etc.

*2 The maximum number of frames changes depending on the image quality and what object you buffer.

*3 POP before SMTP authentication and SMTP authentication (PLAIN and LOGIN) are supported. SMTP authentication (CRAM-MD5) is not supported.

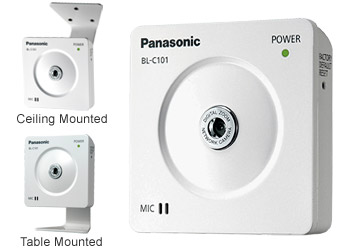

Panasonic IP Camera BL-C101

Rp. 1.700.000,-

FEATURE of BL-C101

Simultaneous MPEG-4 and JPEG

Cameras simultaneously send MPEG-4 images in three resolutions (VGA, QVGA, and QSIF_SP), and JPEG images in the same three resolutions in favour motion, standard, and favour clarity image-quality types. MPEG-4 is recommended for viewing smooth motion images, and JPEG is recommended for recording higher quality images.

• Size comparisons are simulated.

MPEG-4 Visual License

This product is licensed under the MPEG-4 Visual patent portfolio license for the personal and noncommercial use of a consumer for (i) encoding video in compliance with the MPEG-4 Visual Standard (“MPEG-4 Video”) and/or (ii) decoding MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 Video. No license is granted or shall be implied for any other use. Additional information including that relating to promotional, internal and commercial uses and licensing may be obtained from MPEG LA, LLC.
See http://www.mpegla.com. When installing the MPEG-4 viewer program on additional PCs, please purchase additional licenses (Model No. BB-HCA5A for USA, BB-HCA5CE for others).

Built-in Microphone

Sounds picked up by the built-in microphone can be heard through the PC. Video monitoring with sound enhances security by providing additional information that images cannot convey.

10x Digital Zoom Function*

It’s so reassuring to see your pet’s happy face while you are out. A simple mouse operation is all you need to enlarge the image, using the 10x digital zoom, so you get a clear view of your pet’s expression.

Multi-camera Capability*

Check the images from four cameras at once. Monitor 12 cameras in all, and display them all at once (with no audio). Use a recording program (BB-HNP11) to save images and audio to a PC hard disk.

• *1-1 To use this function, one of the cameras must be registered with the addresses of all other cameras in advance. The 640 x 480 resolution cannot be used with the multi-screen display.
• *1-2 Switching from the moving image mode to the still image mode reduces the load on the network. The still image mode is recommended when the Internet connection speed is 100 kbps or lower (guideline speed).
• *1-3 This function can be used only with a PC. It cannot be used with a cell phone.

Motion Detection Function

In this mode, the camera captures an image only when motion is detected based on the preset threshold or sensitivity of the camera. The image can be stored temporarily in the camera, or sent to you by e-mail or FTP data transfer.^*1

• *1-1 The sensor’s detection history can also be e-mailed to you once each day at a preset time.
• *1-2 POP before SMTP authentication and SMTP authentication (PLAIN and LOGIN) are supported. SMTP authentication (CRAM-MD5) is not supported.

SSL Support

This system supports SSL data encrypted communications. By encrypting the network camera’s image and other data for network transmission, it prevents electronic eavesdropping for greatly improved security.

External Input Connector

By connecting commercially available sensors, like door sensors, or switches to the External Input Connector, sensor detection acts as a trigger to record and send images. This helps to expand the camera’s installation area and applications.

Recording Program^* (Included)

You can record the moving images captured by the camera on your PC. This lets you enjoy natural motion that isn’t possible with still pictures.

• * Recording is possible for only one camera. To record images from multiple cameras, use the BB-HNP11.

Detection Notification Sound

While viewing MJPEG images on the single or multi-camera screens, your computer can play a sound to notify you when motion is detected or the external sensor is triggered.

Specifications

Server
Image compression	JPEG (Motion JPEG), MPEG-4
Video resolution	640 x 480, 320 x 240 (default), 192×144
Image quality	JPEG (favor clarity, standard, favor motion), MPEG-4
Frame rate*1	Max. 30 frames/sec. (640 x 480*2, 320 x 240, 192 x 144)
Security	User ID / password, SSL
Supported protocols	IPv4/IPv6 Dual-Stack IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, UPnP™, SMTP Authentication, RTP, RTSP*3, RTCP, HTTPS, SSL, TLS IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP, NTP, RTP, RTSP*3, RTCP, HTTPS, SSL, TLS
User access limit	Max. 30 simultaneous users (Max. 10 users in SSL communication)
Buffered images*4	Approx. 250 images (320 x 240) •Standard image quality •with time display
Image transfer method	SMTP*5, FTP, HTTP
Image buffer/transfer triggers	Alarm, timer or motion detection
Network camera
Zoom	10x digital zoom (by area)
Viewing angle	58° horizontal, 45° vertical
Sensor type	1/4 inch CMOS sensor, approx. 320,000 pixels
Lens focal point	Fixed (focal range: 0.3 m to ?)
Lens brightness	F2.8
Required light intensity	5 to 10,000 lux (in color night view mode : 3 to 10,000 lux )
Audio
Audio communication	One-way communication
Audio compression	ADPCM 32 kbps
Audio bandwidth	300 Hz – 3,4 kHz
Audio input	Built-in microphone
Terminal
Network interface	Ethernet (10Base-T/100Base-TX)
External I/O connector	Input: 1
General
Operating temperature	+5°C to +40°C (+41°F to +104°F)
Operating humidity	20% to 80% (no condensation)
Dimensions (H x W x D)	85 x 85 x 27 mm (3 3/8 x 3 3/8 x 1 1/16 inches)
Weight (only the unit)	100 g (0.22 lb)
Power supply (E)	Input: 220-240 V AC, output: 9 V DC
Power supply (CE)	Input: 100-240 V AC, output: 9 V DC
Power supply (US)	Input: 120 V AC, output: 9 V DC
Consumption	2.8 W

*1 The frame rate may slow down depending on the network environment, PC performance, image quality, when viewing dark images, etc.

*2 For MPEG-4 only. Not applicable to JPEG.

*3 Only still images in JPEG format can be displayed on a mobile phone.

*4 The maximum number of images that can be buffered depends on image resolution and image quality. For information about MPEG-4 image capacity, see the Panasonic Network Camera website at http://panasonic.net/pcc/support/netwkcam/support/info.html.

*5 POP Before SMTP Authentication and SMTP Authentication (PLAIN, LOGIN, and CRAM-MD5) are supported.

System Requirements for your PC

Your PC (Personal Computer) and network must meet the following technical specifications for the camera to work properly.

Operating System	For IPv4 Connection Microsoft® Windows Vista® Microsoft® Windows® XP Microsoft® Windows® 2000For IPv6 Connection Microsoft® Windows Vista® Microsoft® Windows® XP Service Pack 1 or later
CPU	2.0 GHz Celeron® or faster
Display	1024 x 768 resolution or higher
Protocol	For IPv4 Connection TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP) For IPv6 Connection TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ICMPv6,NDP)
Interface	10/100 Mbps network card
Web browser	Internet Explorer® 6.0 or later (not included)
Additional software (for viewing buffered MPEG-4 images)	For Windows Vista® Windows Media® Player 11 or later For Windows® XP Windows Media® Player 9 or later For Windows® 2000 Windows Media® Player 9
