VIDEO INTERCOM SYSTEMS

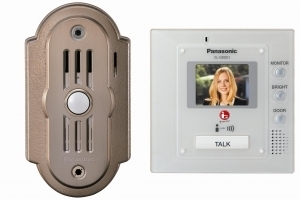

Video Intercom Systems VL-G201N/S
Tender but Tough Protection
A sure, convenient way to protect home and family. Panasonic introduces an innovative new system for protecting your home from intruders. Combining video and intercom functions, this system lets you see and speak with visitors before opening the door.
With Panasonic’s advanced new video intercom systems, protecting loved ones has never been easier.
| Monitor | ||
| System Configuration | : | 1 monitor 1 camera |
| LCD Size | : | 2.5″ |
| Communication | : | Handsfree or Press-to-talk |
| Answer By Voice | : | Yes |
| Ringer Volume | : | OFF/LOW/HIGH |
| Camera Capability | : | 1 |
| Door Strike | : | Yes (1 circuit) |
| PBX/doorphone Adaptor Connect | : | Yes (1 circuit) |
| Indication Time of Video Monitor | ||
| Outside Call (Calling) | : | Approx. 30 second |
| Monitoring | : | 1 minute |
| Outside Call (Talking) | : | 1 minute 30 seconds |
| Outside Call (Press to talk) | : | 1 minute |
| Brightness | : | 5 steps |
| Installation | : | Surface Mount / Desk mount |
| Dimensions | : | W136 x D32 x H136 mm |
| Material | : | ABS |
| Power Consumtion | : | Stand-by 30 mA, Operation 420 mA (DC 24V)) |
| Operating Environment | : | 0°C ~ 40°C |
| Monitor – Power Supply | : | 30 m (Fire Alarm Cable) |
| Main Monitor – Camera | : | 100 m (CAT3 Cable) |
| Door Station | ||
| Colour | : | Gold/Silver |
| Material | : | Aluminium |
| View Area | ||
| Horizontal (50cm From Camera) | : | Approx. Left & Right 58 cm (60″); Angle Change 65 cm (75″) |
| Vertical(50cm From Camera) | : | Approx. Upside 43 cm (46″) |
| Angle Adjustment | : | Left & Right |
| Operating Environment | : | -10°C ~ 50°C |
| Power Supply | : | From Monitor |
| Lighted Key | : | Yes (Blue Light) |
| Camera Device | : | CCD (250k pixels) |
| Minimum Brightness | : | Approx. 1 Lux / 50 cm from Camera |
| Infrared Camera | : | Yes |
| Splash Resistant | : | Yes |
| Dimension | : | W90 x D35 x H165 mm |
