SAMSUNG INFRARED CCTV CAMERA

SAMSUNG INFRARED CCTV CAMERA Analogue SCD-2020R

• High resolution of 600TV lines
• Min. illumination 0Lux (IR LED on), IR distance 7m
• Built-in fixed lens (3.6mm), SSNRIII (3D+2D)
• Coaxial control, 12V DC

SAMSUNG INFRARED CCTV CAMERA SCD-2080R

• High resolution of 600TV lines (Color), 700TV lines (B/W)
• Min. illumination 0Lux (IR LED on), IR distance 20m
• 3.6x V/F lens (2.8 ~ 10mm)
• True Day & Night (ICR), MD, SSNRIII (3D+2D)
• Coaxial control (Pelco-C), 12V DC

SAMSUNG INFRARED CCTV CAMERA SCV-2080R

• 1/3″ Super HAD color CCD
• Based on W-V, the latest generation of Winner DSP engine
• Built-in 3.6x (2.8 ~ 10mm) varifocal lens with auto iris
• Built-in high-performance IR LEDs
• SSNRIII, Upgraded 2D/3D noise reduction technology
• Day & Night with ICR (Infrared Cutfilter Removal)
• High resolution of 600TV lines (Color), 700TV lines (B/W)
• Min. illumination
– 0Lux@F1.2 (LED on)
– 0.15Lux@F1.2 (Color)
– 0.0003Lux@F1.2 (Color sens-up)
• Privacy masking with 12 user programmable zones
• Protection against water & dust (IP66)
• Two types of installation (Flush or surface mount)
• SSDR (Samsung Super Dynamic Range)
• HLC (Highlight Compensation)
• DIS (Digital Image Stabilization)
• Motion detection
• Coaxial & RS-485 control
• 512x sens-up support
• Multi-language OSD
• S/N ratio of 52dB
• Dual voltage : 12V DC / 24V AC

SAMSUNG INFRARED CCTV CAMERA SCV-2081R

• 1/3″ Super HAD CCDII
• Based on W-V, the latest generation of Winner DSP engine
• Built-in 3.6x (2.8 ~ 10mm) varifocal lens with auto iris
• Built-in high-performance IR LEDs (IR distance 20m)
• SSNRIII, Upgraded 2D/3D noise reduction technology
• Day & Night with ICR (Infrared Cut filter Removal)
• High resolution of 600TV lines (Color), 700TV lines (B/W)
• Min. illumination
– 0Lux@F1.2 (LED on)
– 0.15Lux@F1.2 (Color)
– 0.0003Lux@F1.2 (Color sens-up)
• Privacy masking with 12 user programmable zones
• Protection against water & dust (IP66)
• Two types of installation (Flush or surface mount)
• SSDR (Samsung Super Dynamic Range)
• HLC (Highlight Compensation)
• DIS (Digital Image Stabilization)
• Motion detection
• Coaxial control
• 512x sens-up support
• Multi-language OSD
• S/N ratio of 52dB
• Dual voltage : 12V DC / 24V AC

SAMSUNG INFRARED CCTV CAMERA SCO-2080R

• 1/3″ Super HAD color CCD
• Based on W-V, the latest generation of Winner DSP engine
• Built-in 3.6x (2.8 ~ 10mm) varifocal lens with auto iris
• Built-in high-performance IR LEDs
• SSNRIII, Upgraded 2D/3D noise reduction technology
• Day & Night with ICR (Infrared Cutfilter Removal)
• High resolution of 600TV lines (Color), 700TV lines (B/W)
• Min. illumination of 0Lux@F1.2 (LED on)
0.15Lux@F1.2 (Color)
0.0003Lux@F1.2 (Color sens-up)
• Privacy masking with 12 user programmable zones
• Protection against water & dust (IP66), Sunshield
• SSDR (Samsung Super Dynamic Range)
• HLC (Highlight Compensation)
• DIS (Digital Image Stabilization)
• Motion detection
• Coaxial & RS-485 control
• 512x sens-up support
• Multi-language OSD
• S/N ratio of 52dB
• Dual voltage : 12V DC / 24V AC

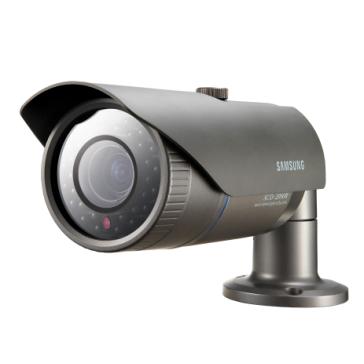

SCO-2120R

The SCO-2120R from Samsung features the W-V DSP chipset to deliver dvanced functionality such as 600TVL resolution, coaxial control compatibility, Samsung Super Dynamic Range (SSDR) and third generation Samsung Super Noise Reduction (SSNRIII), which eliminates image noise in low light conditions without creating motion blur or ghosting.
Complete with a 12x zoom lens, the SAMSUNG INFRARED CCTV CAMERA SCO-2120R benefits from timed resets to enable the zoom function to operate automatically at pre-determined times during the day. This can be set-up effortlessly via the coaxial cable from a compatible DVR.
The SAMSUNG INFRARED CCTV CAMERA SCO-2120R is housed in a full weatherproof casing rated to IP66 with integrated sunshield and supplied with a mounting bracket that allows the camera to be installed either wall, surface or ceiling mount to ensure the required field of view can be obtained every time.
• 12x optical zoom (3.9 ~ 46mm)
• Equipped with high performance Adaptive Illumination IR LEDs
• 70m monitoring range
• Dustproof & waterproof integrated camera housing rated to IP66
